SUITABLE FOR TYPE DORNIER POLYESTER FILM STRETCHING LINES
DOUBLE LEVER HIGH SPEED TDO CLIP & CHAIN LINK ASSEMBLY
EQ. TO MODEL : HS-9
TDO Clip & Chain Link Assembly
Model No: HS-9
TDO Clip Assembly
Model No: HS-9
TDO Chain Link Assembly
Model No: HS-9

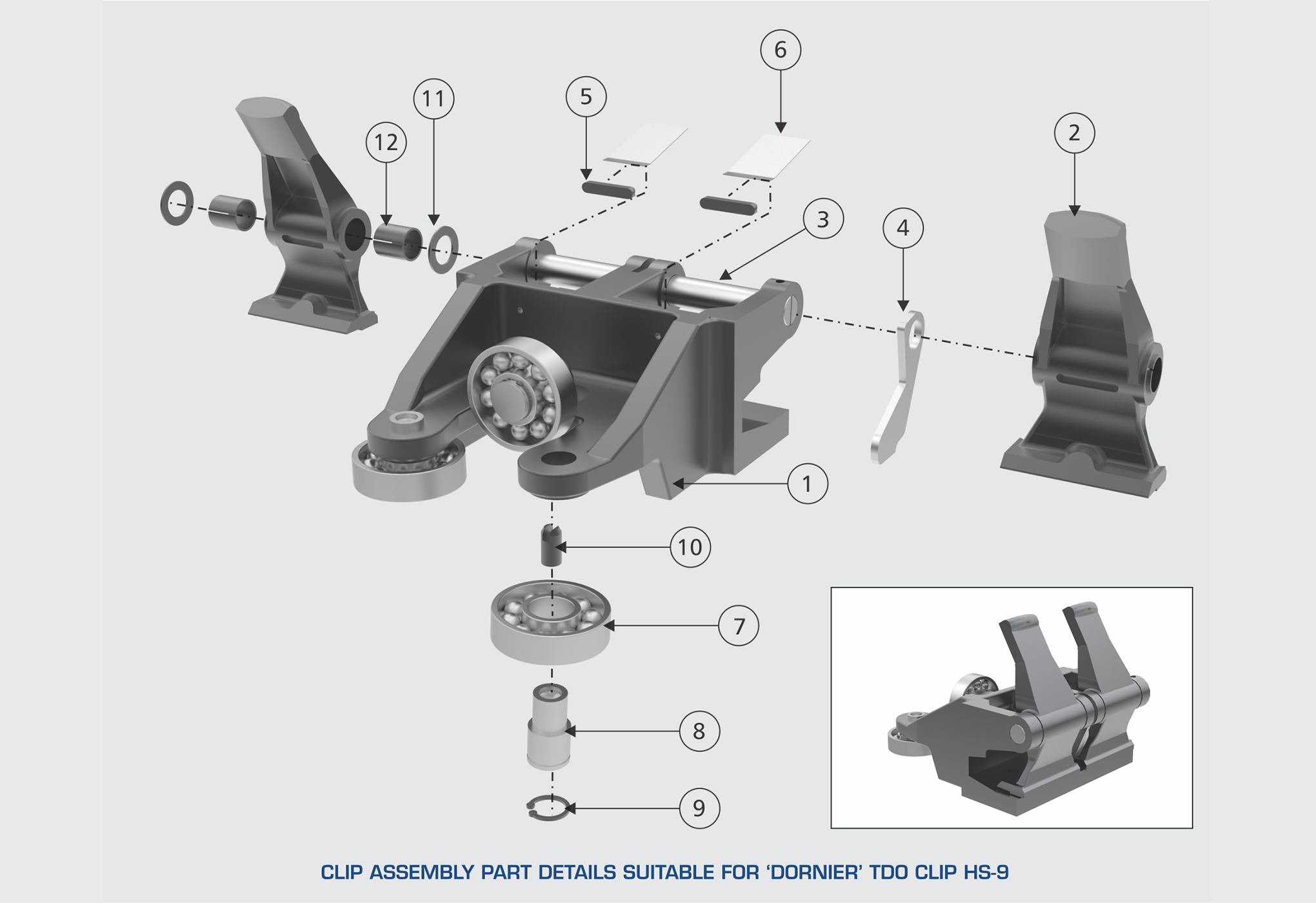

Clip Assembly Part Details Suitable for Dornier TDO Clip HS-9
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
1 |
CLAMPING PART |
| 2 |
2 |
GRIPPER / FLAP |
| 3 |
1 |
GRIPPER PIN |
| 4 |
1 |
FACING |
| 5 |
2 |
SPRNG |
| 6 |
2 |
FLAP SPRING |
| 7 |
3 |
BEARING |
| 8 |
3 |
BEARING PIN |
| 9 |
3 |
EXTERNAL CIRCLIP 15x1 |
| 10 |
1 |
GUIDE PIN FOR REJECTION PLATE |
| 11 |
4 |
ROLLEN WASHER 020 MM |
| 12 |
4 |
SELF LUBRICATED BUSHING FOR FLAP |
Chain Link & Carrier Assembly Part Details Suitable for Drnier TDO Clip HS-9
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
1 |
CHAIN BASE |
| 2 |
2 |
CHAIN PIN |
| 3 |
3 |
BEARING PIN |
| 4 |
1 |
BEARING PIN |
| 5 |
4 |
BEARING SHIELD (026x012.8x1) |
| 6 |
4 |
BEARING |
| 7 |
4 |
TOLERANCE RING |
| 8 |
4 |
EXTERNAL CIRCLIP |
| 9 |
2 |
LOCK NUT M8 |
| 10 |
2 |
SECURING SCREW M8x16 |
| 11 |
2 |
BEARING |
| 12 |
1 |
ROLLEN WASHER 038 mm |
| 13 |
3 |
EXTERNAL CIRCLIP 15x1 |

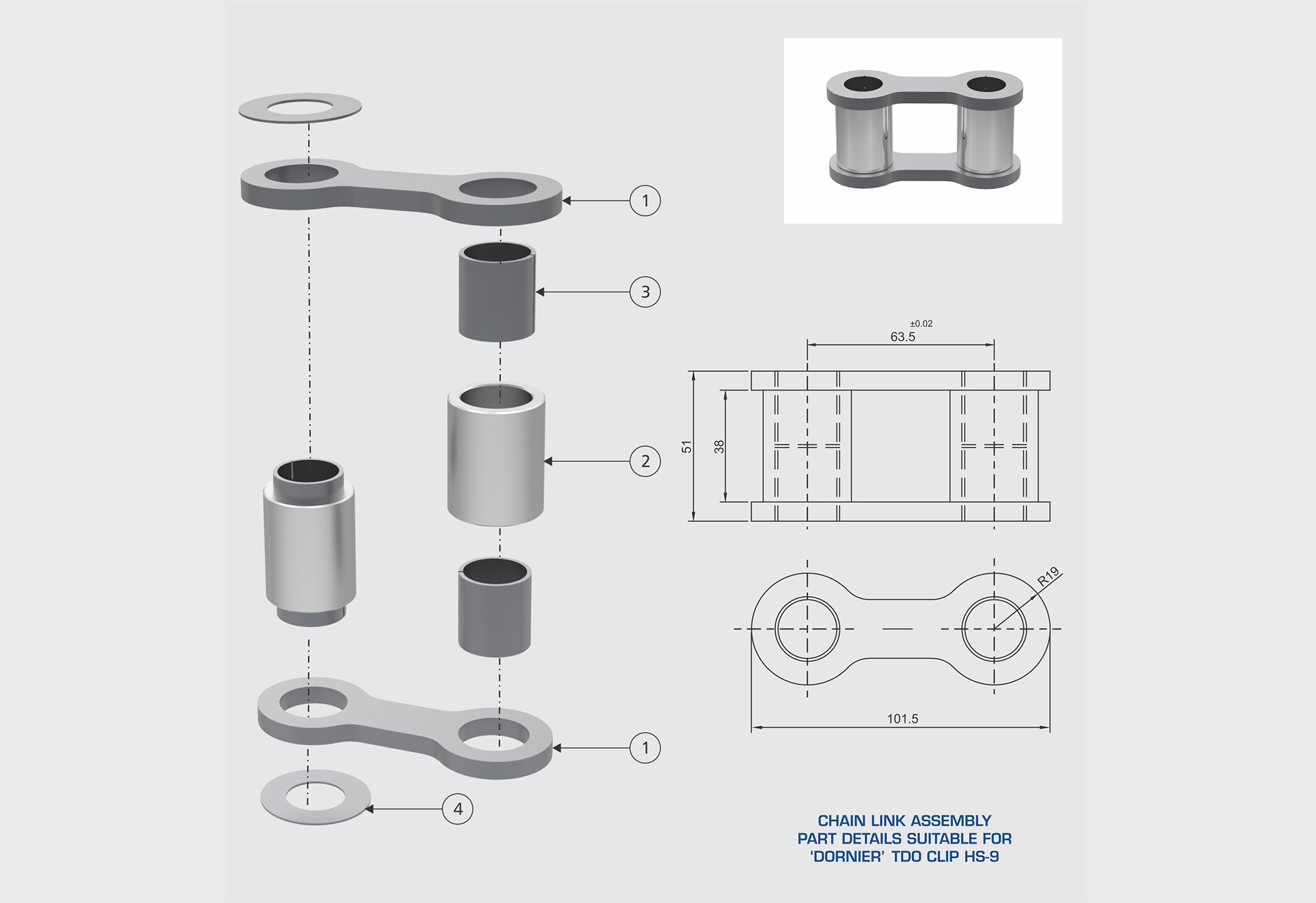

Chain Link Assembly Part Details Suitable for Dornier TDO Clip HS-9
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
2 |
TOP & BOTTOM PLATE |
| 2 |
4 |
ROLLER |
| 3 |
4 |
BUSHING FOR CHAIN LINK |
| 4 |
2 |
ROLLEN WASHER 038MM |
