TDO Tenter / Stenter Clip & Chain Link Assembly

Double Lever TDO Tenter / Stenter Clip & Chain Link Assembly Suitable For ‘Bruckner’ Stenter, EQ. to Model No: FOK 4.4.6

TDO Clip & Chain Link Assembly

Model No: Fok 4.4.6

TDO Clip Assembly

Model No: Fok 4.4.6

TDO Chain Link Assembly

Model No: Fok 4.4.6

Clip Assembly Part Details Suitable for Bruckner TDO Clip Fok 4.4.6

EQ TO POS.NO	QUANTITY	DESCRIPTION OF ITEMS
1	1	CLIP BODY FOR FOK 4.4.6
2	2	CLIP KNIFE
3	2	GUIDE BUSH (SPRING HOLDER)
4	1	AXLE (FOR CLIP KNIFE)
5	1	AXLE (FOR SPRING HOLDER)
6	4	FLANGED BUSHING
7	4	BUSHING
8	2	PRESSURE SPRING
9	1	ROLL PIN (SPRING DOWEL )
10	2	ROLL PIN (SPRING DOWEL)
11	2	THRUST PIECE
12	2	THRUST PIECE

Chain Link & Shoe Assembly Part Details Suitable for Bruckner TDO Clip Fok 4.4.6

EQ TO POS.NO	QUANTITY	DESCRIPTION OF ITEMS
1	2	SIDE BAR COVER PLATE
2	2	CHAIN LINK SUB ASM
3	2	SIDE BAR COVER PLATE PIN
4	2	NUT FOR CHAIN LINK BOLT

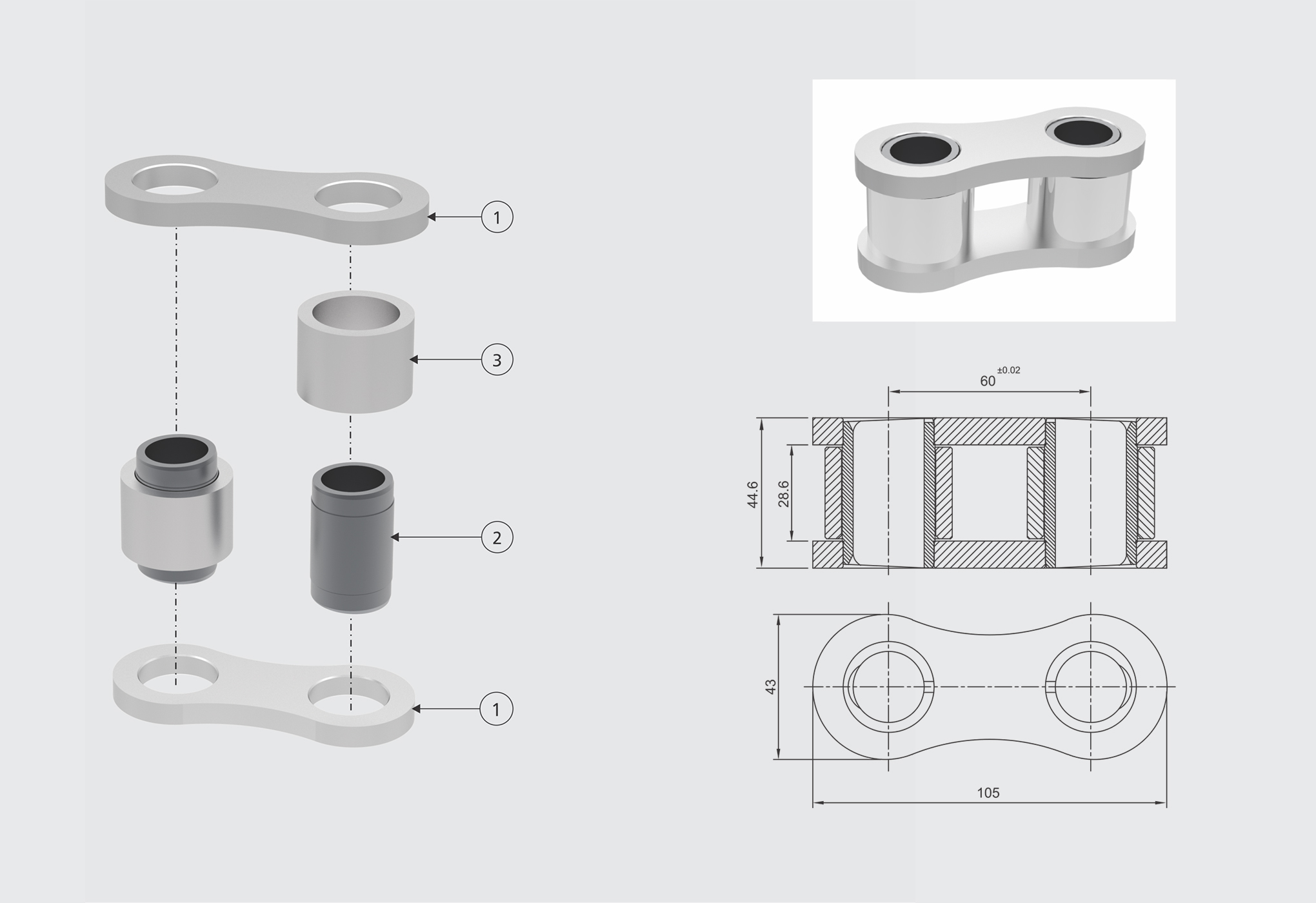

Chain Link Assemblies Part Details Suitable for Bruckner TDO Clip Fok 4.4.6

EQ TO POS.NO	QUANTITY	DESCRIPTION OF ITEMS
1	2	UPPER AND LOWER LINK PLATE
2	2	SLEEVE
3	2	ROLLER

Double Lever Tdo Tenter/stenter Spares

Suitable For Bruckner Stenter Clip Model : 4.4.6

DISTANCE RING

PART REF. NO:219194

GUIDING PLATE

PART REF. NO:218444

HEXAGON NUT

PART REF. NO:538775.1

GUIDING PLATE

PART REF. NO:218209

SIDE BAR COVER PLATE

PART REF. NO:211389

COVER PLATE ASSEMBLY

PART REF. NO:218651

AXLE 5.95 x 102

PART REF. NO:218445

AXLE 11.95 x 114

PART REF. NO:218446

BUSHING

PART REF. NO:540274.1

CLIP BODY

PART REF. NO:218206

CLIP KNIFE

PART REF. NO:218207

COMPRESSION SPRING

PART REF. NO:521145

FLANGE BUSHING

PART REF. NO:522117.1

GUIDE BUSH

PART REF. NO:218208

O - RING

PART REF. NO:521146

SPRING TYPE STRAIGHT PIN

PART REF. NO:521144

THRUST PIECE

PART REF. NO:223749

CLIP ASSEMBLY (A)

PART REF. NO:219048

BUSHING

PART REF. NO:218647

CLIP ASSEMBLY (B)

PART REF. NO:235780
