SUITABLE FOR TYPE BRUCKNER
DOUBLE LEVER TDO CLIP & CHAIN LINK ASSEMBLY
EQ. TO MODEL : FOK 4.4.2
TDO Clip & Chain Link Assembly
Model No: Fok 4.4.2

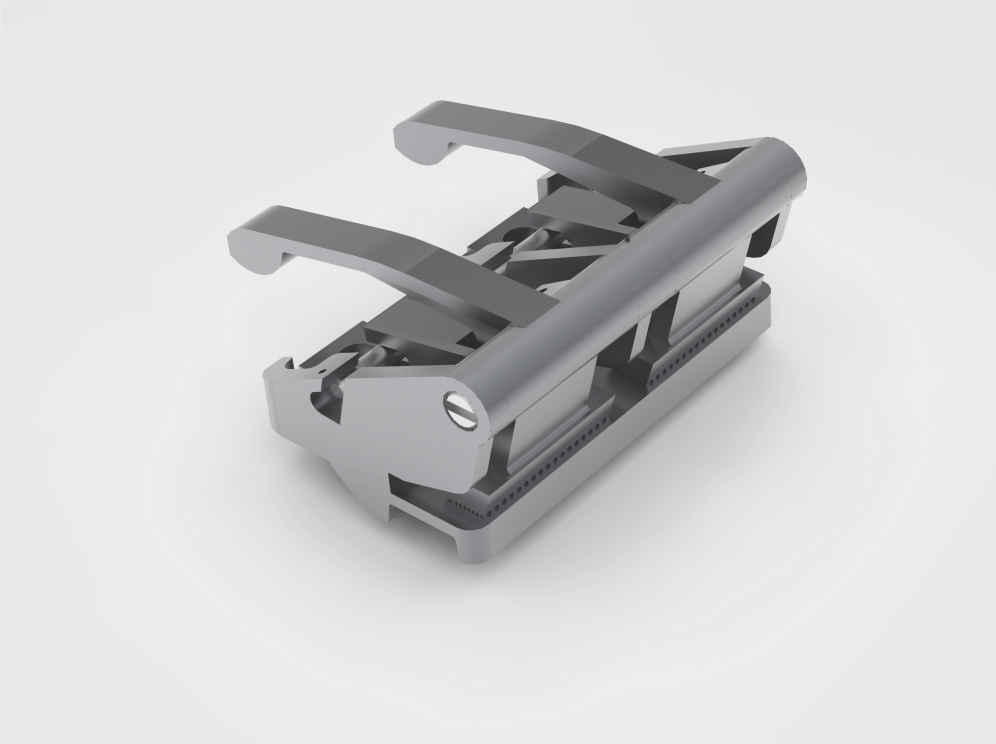

TDO Clip Assembly
Model No: Fok 4.4.2
TDO Chain Link Assembly
Model No: Fok 4.4.2
Clip Assembly Part Details Suitable for Bruckner TDO Clip Fok 4.4.2
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
1 |
CLIP BODY FOR FOK 4.4.2 |
| 2 |
2 |
CLIP KNIFE |
| 3 |
2 |
GUIDE BUSH (SPRING HOLDER) |
| 4 |
1 |
AXLE (FOR CLIP KNIFE) |
| 5 |
1 |
AXLE (FOR SPRING HOLDER) |
| 6 |
4 |
FLANGED BUSHING |
| 7 |
4 |
BUSHING |
| 8 |
2 |
PRESSURE SPRING |
| 9 |
1 |
ROLL PIN (SPRING DOWEL ) |
| 10 |
2 |
ROLL PIN (SPRING DOWEL ) |
| 11 |
2 |
THRUST PIECE |
Chain Link & Shoe Assembly Part Details Suitable for Bruckner TDO Clip Fok 4.4.2
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
2 |
CHAIN LINK SUB ASM |
| 2 |
1 |
SLIDING SHOE (C-BRACKET) |
Chain Link Assemblies Part Details Suitable for Bruckner TDO Clip Fok 4.4.2
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
1 |
OUTER LINK |
| 2 |
1 |
INNER LINK |
| 3 |
2 |
CHAIN PIN |
| 4 |
2 |
CHAIN BUSH |
| 5 |
2 |
CHAIN ROLLER |
| 6 |
2 |
LOCKING NUT |
