SUITABLE FOR TYPE BRUCKNER
SINGLE LEVER TDO CLIP & CHAIN LINK ASSEMBLY
EQ. TO MODEL : MITSUBISHI / TOSHIBA
TDO Clip & Chain Link Assembly
Model No: Fok 4.4.1

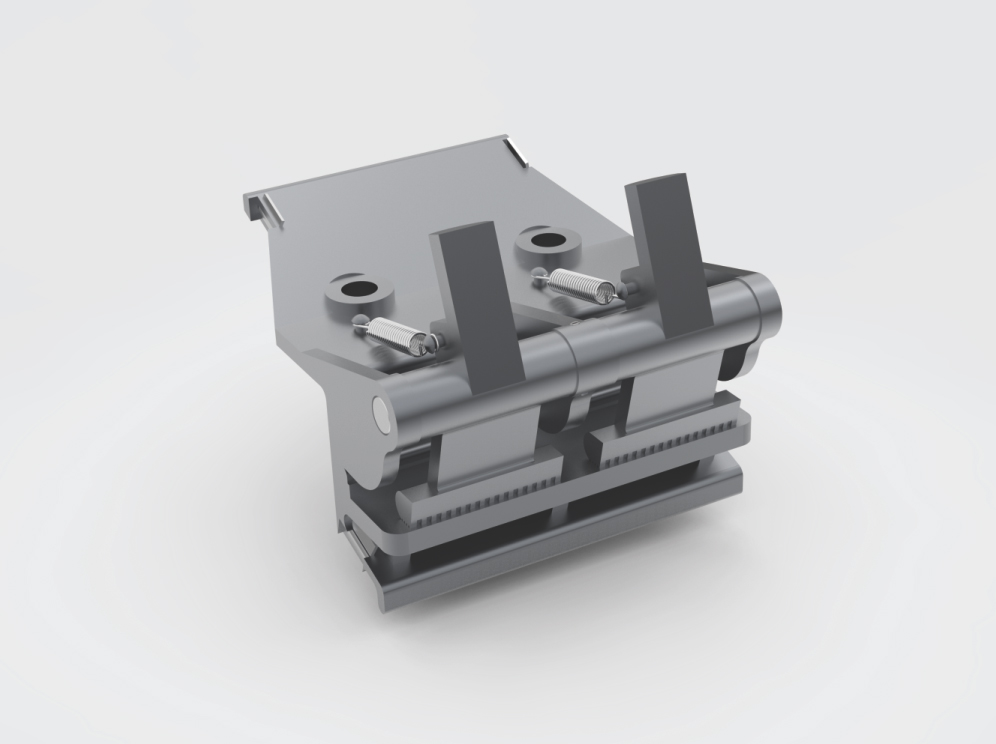

TDO Clip Assembly
Model No: Fok 4.4.1
TDO Chain Link Assembly
Model No: Fok 4.4.1
Clip Assembly Part Details Suitable for Bruckner TDO Clip Fok 4.4.1
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
1 |
CLIP BODY FOR FOK 4.4.1 |
| 2 |
2 |
CLIP KNIFE |
| 3 |
1 |
AXLE (FOR CLIP KNIFE) |
| 4 |
1 |
SLIDE SPRING |
| 5 |
1 |
SLIDE SPRING |
| 6 |
2 |
SPRING |
| 7 |
4 |
RIVET |
| 8 |
1 |
SPRING DOWEL |
Chain Link Assemblies Part Details Suitable for Bruckner TDO Clip Fok 4.4.1
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
2 |
LINK PIN |
| 2 |
2 |
LINK BUSH |
| 3 |
2 |
OUTER LINK |
| 4 |
2 |
INNER LINK |
| 5 |
2 |
WASHER 25 x 015.2 x 2.7 THK. |
| 6 |
2 |
WASHER 20.3 x 015.2 x 2.7 THK. |
| 7 |
2 |
HEX NUT M10 x 1P |
| 8 |
2 |
BEARING |
