SUITABLE FOR TYPE BRUCKNER
DOUBLE LEVER TDO TENTER / STENTER CLIP &
CHAIN LINK ASSEMBLY
EQ. TO MODEL : BRUCKNER -1ST LINE
TDO Clip Assembly
Model No: 1st Line
Clip Assembly Part Details Suitable for Bruckner TDO Clip 1st Line
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
1 |
CLAMPING PART |
| 2 |
1 |
FLAP R.H. |
| 3 |
1 |
FLAP L.H. |
| 4 |
1 |
PIN |
| 5 |
2 |
TENSION SPRING |
| 6 |
4 |
RIVET |
| 7 |
1 |
SPRING DOWEL |

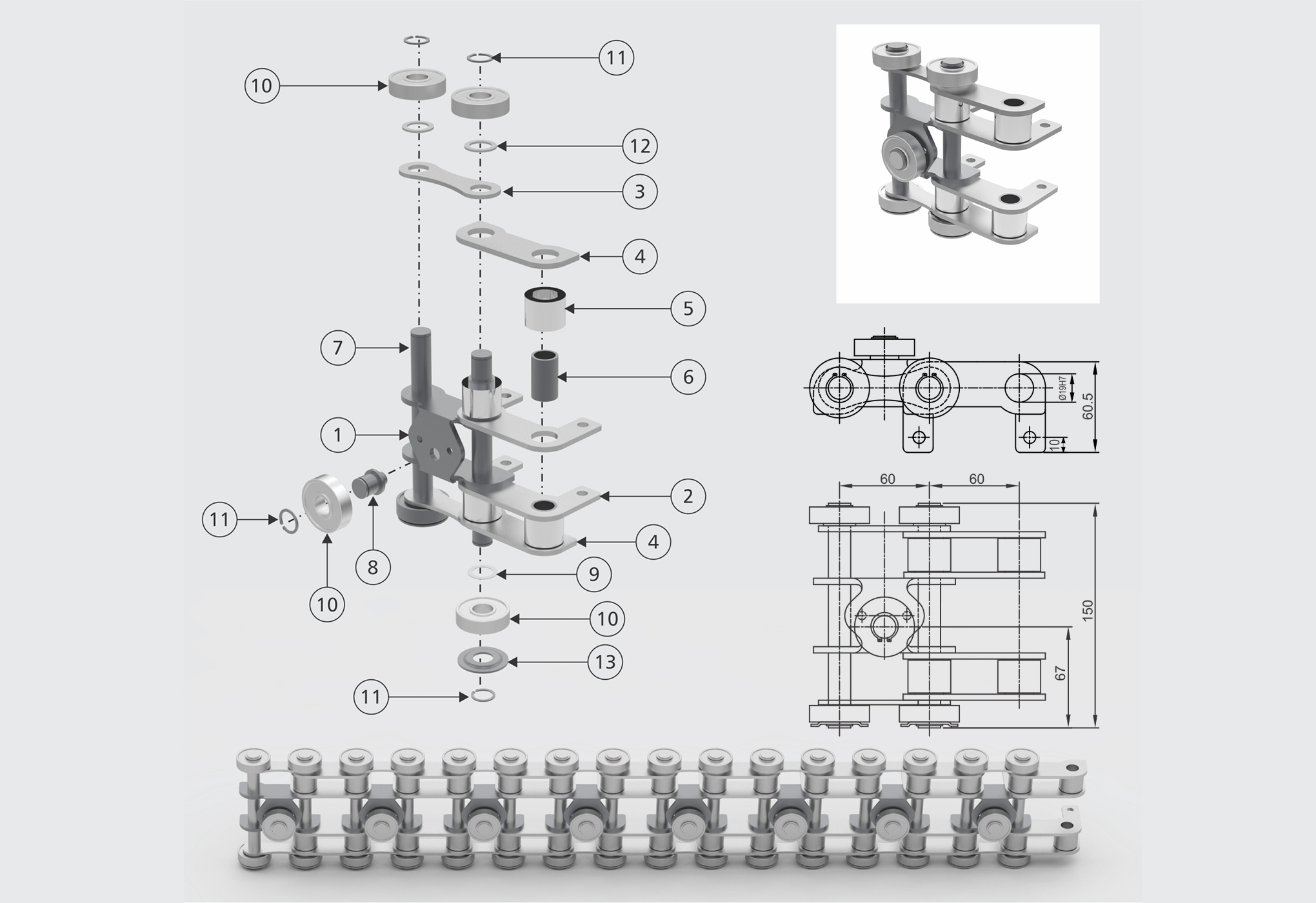

Chain Link Assembly Part Details Suitable for Bruckner TDO Clip 1st Line
| EQ TO POS.NO |
QUANTITY |
DESCRIPTION OF ITEMS |
| 1 |
1 |
CENTER LINK |
| 2 |
2 |
INNER LINK |
| 3 |
2 |
CONNECTING LINK |
| 4 |
2 |
OUTER LINK |
| 5 |
4 |
OUTER BUSH |
| 6 |
4 |
INNER LINK |
| 7 |
2 |
PIN |
| 8 |
1 |
PIN |
| 9 |
2 |
WASHER (0.5 MM) |
| 10 |
5 |
BEARING |
| 11 |
5 |
EXTERNAL CIRCLIP TYPE A 15 |
| 12 |
2 |
WASHER (1.5 MM) |
| 13 |
2 |
CUP WASHER (1.5 MM) |
